Measurement: Alternating Current (AC)
Accuracy: Class 0.5
Primary Current Input: 100~600A AC
Rated Voltage: 660V AC
Rated Frequency: 50~60Hz

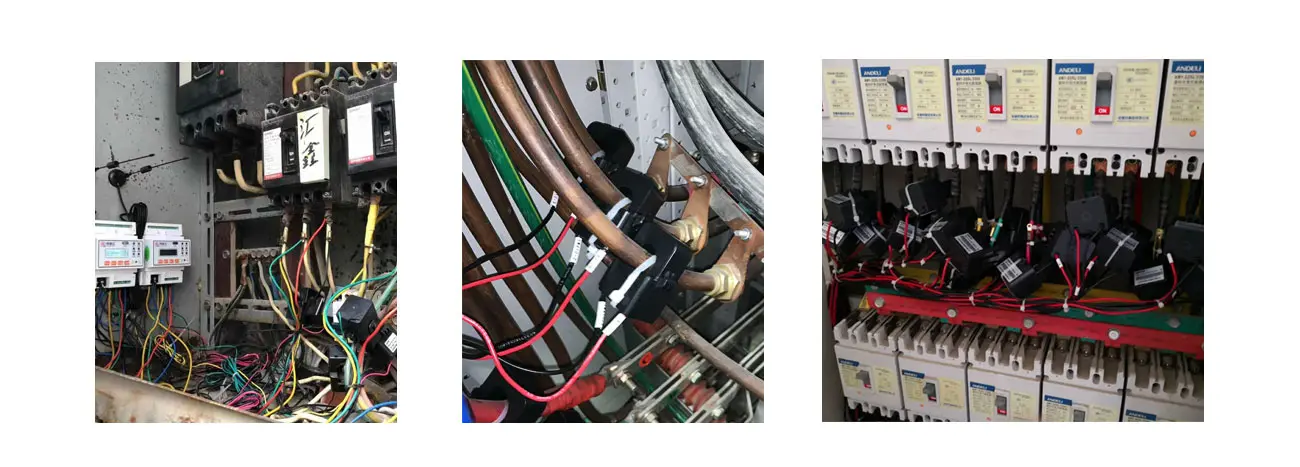

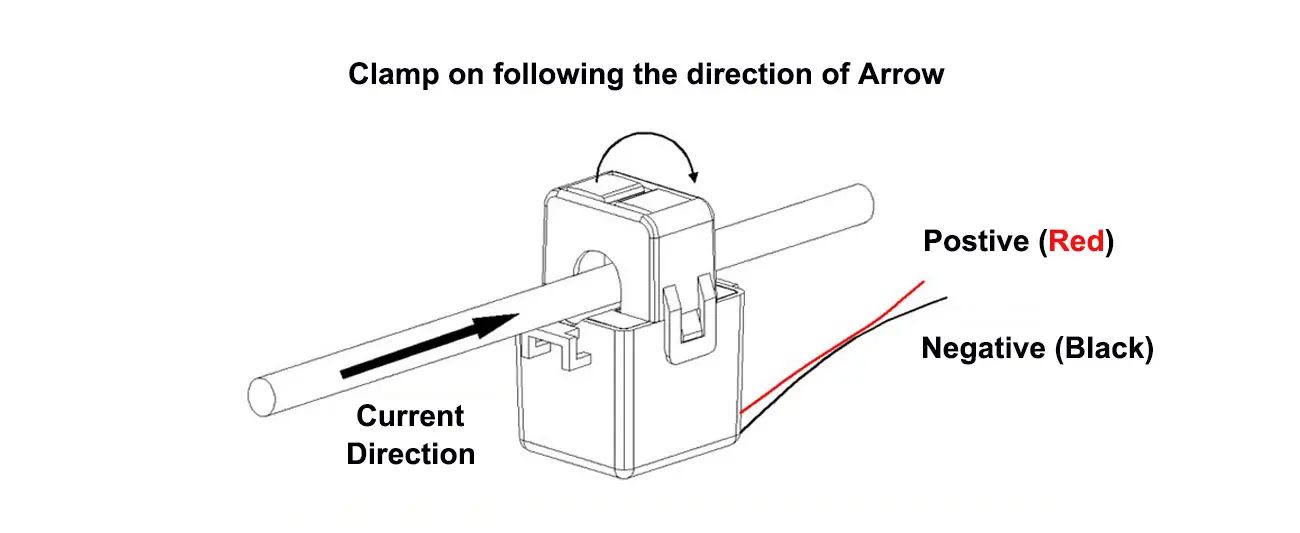

Installtion: Clamp-on (installed on Cable)
Loop Count: 1 Loop
Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
Contact Us
| Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
AKH-0.66/K-φ10 | 5A/1.25mA | 0.5 | 10 | φ10 |
| (10~20)A/5mA | ||||
| (40~60)A/20mA | ||||
| AKH-0.66/K-φ16 | (20~50)A/10mA | φ16 | ||
| (40~100)A/20mA | ||||
| 100A/40mA | ||||
| AKH-0.66/K-φ24 | (60~200)A/20mA | φ24 | ||
| (100~250)A/40mA | ||||
| 400A/100mA | ||||
| AKH-0.66/K-φ36 | (100~200)A/10mA | φ36 | ||
| (200~400)A/20mA | ||||
| (300~600)A/100mA | ||||
| 400A/40mA | ||||
| 600A/75mA | ||||
| AKH-0.66/K-φ50 | (600~800)A/100mA | φ50 |

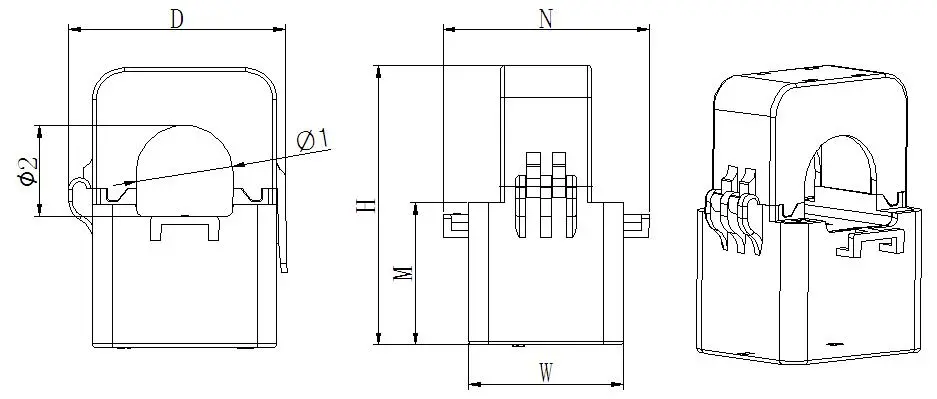

| Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | |||||
| W | H | D | M | N | φ1 | φ2 | ||
| AKH-0.66/K-φ10 | 27 | 40 | 26 | 24 | 36 | 10 | 9 | ±1 |
| AKH-0.66/K-φ16 | 31 | 50 | 29 | 28 | 42 | 16 | 17 | |
| AKH-0.66/K-φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | |
| AKH-0.66/K-φ36 | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | |
| AKH-0.66/K-φ50 | 46.5 | 110 | 90 | 54 | 66.5 | 47 | 52 | |
