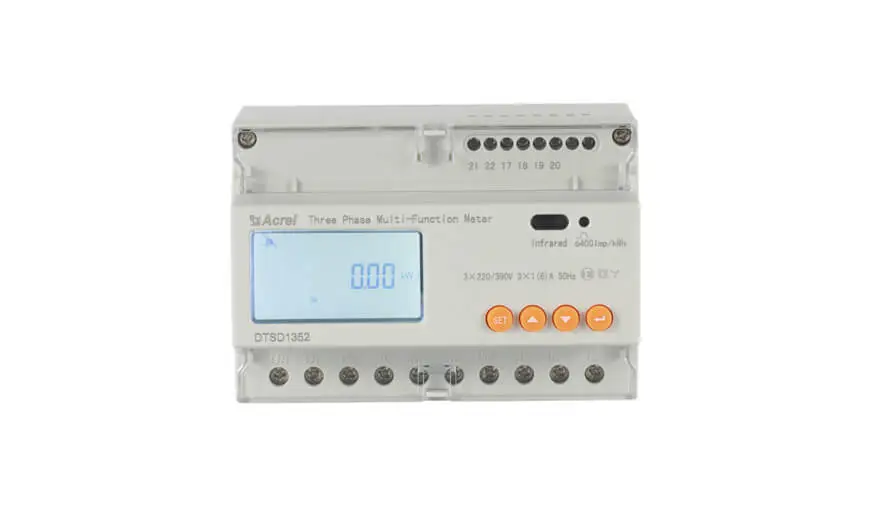

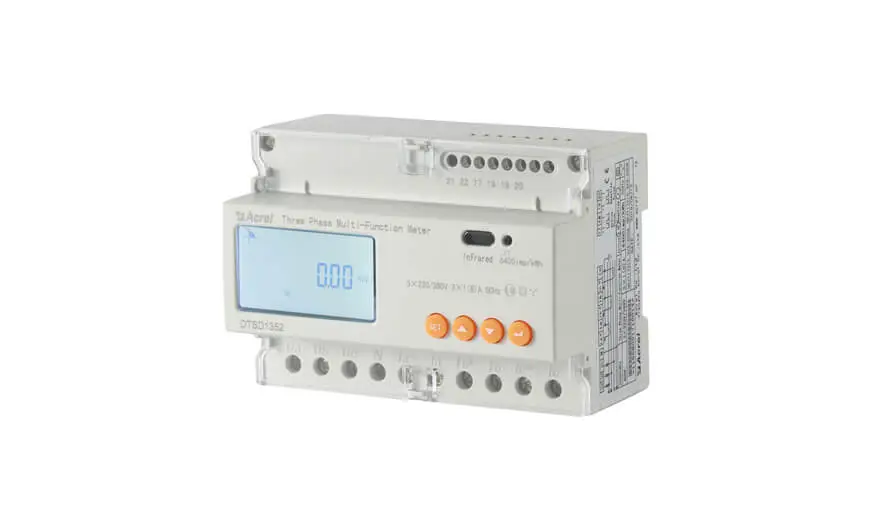

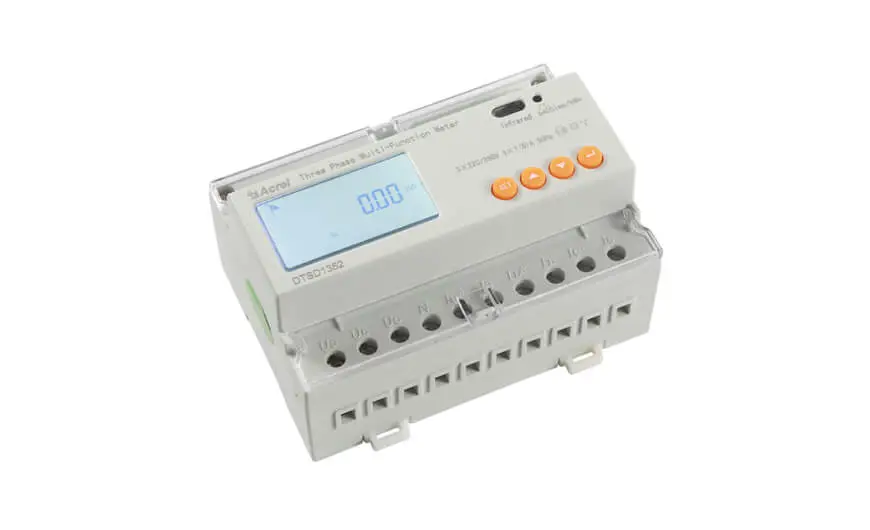

ADL3000-E Three-phase Multi-function DIN Rail Energy Meter

Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
Current Rating: 3x10(80)A; 3x1(6)A
Frequency: 45~65Hz

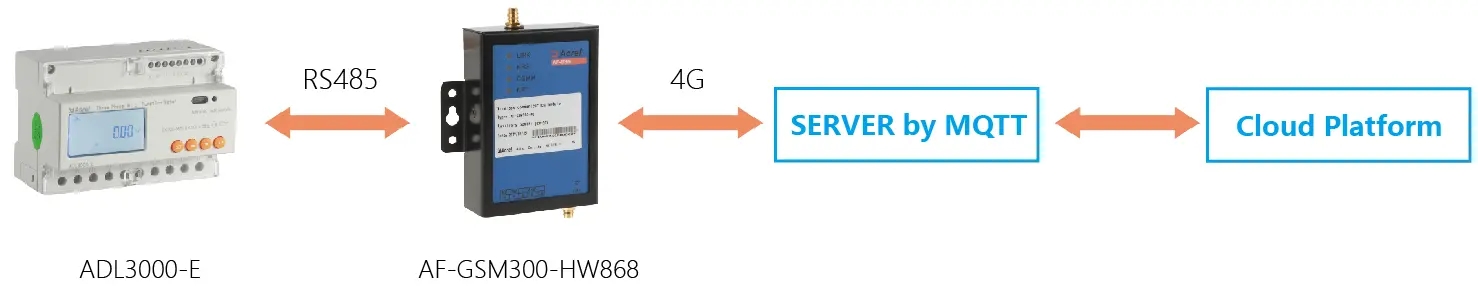

Commnunication: RS485 (MODBUS-RTU) and Infrared
Multi-rate: Spike, Peak, Valley and Flat kWh
Extra Function: Cable Temperature Measurement and DO/DI
Display: LCD (8 digits)
Dimension: 127*88*70mm (L*W*H)
Wiring: 3-phase 4wire; 3-phase 3-wire

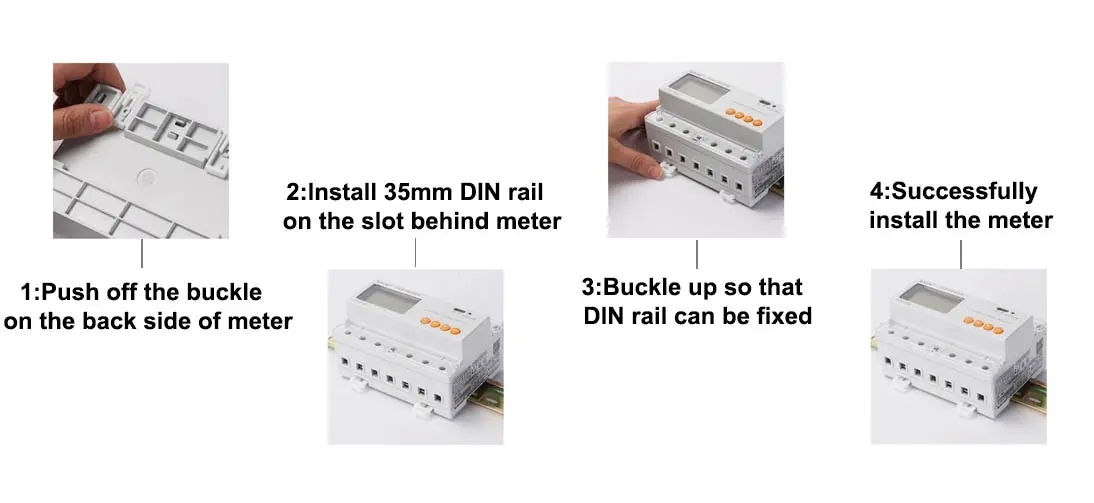

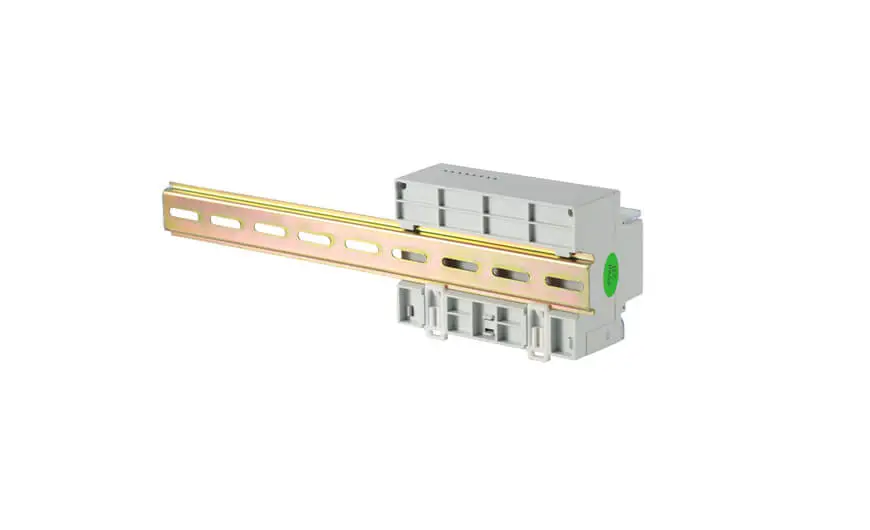

Installation: 35mm DIN Rail
Standard&Certificate: IEC; CE; EAC

PDF Download

Specifications of ADL3000-E Three-phase Multi-function DIN Rail Energy Meter

1. Function description

Function	Function description	Function provide
Measurement of kWh	Active kWh (positive and negative)	■
	Reactive kWh (positive and negative)	■
	A, B, C phase positive active kWh	■
Measurement of electrical parameters	U, I, P, Q, S, PF, F	■
Measurement of electrical parameters	U, I, P, Q, S, PF, F	■
Measurement of	2~31ST Voltage and current harmonic	□Note 1

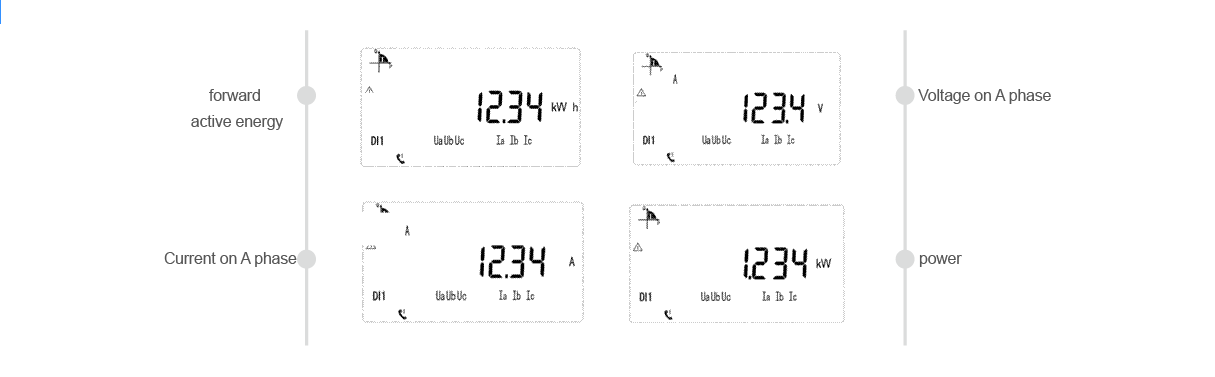

LCD Display	8 bits section LCD display, background light	■
Key programming	4 keys to communication and set parameters	■
Pulse output	Active pulse output	■
	Reactive pulse output	□Note 2
	Clock pulse output	□Note 2
Multi-tariff and functions	Active switch input	□Note 3
	Switch output	□Note 2
	Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates	□
	Max demanded kWh and time happened	□
	Frozen data on last 48 months, last 90days	□
	Date, time	□
Communication	Infrared communication	■
	The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU	□
	The second communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU	□Note 3
Temperature measurement	Support 3 outlay NTC temperature	□Note 4

“■” means standard, “□” means optional.

2. Technical parameter

Specification		3 phase 3 wires, 3 phase 4 wires
Voltage	Reference voltage	3×100V、 3×380V、3×57.7/100V、 3×220/380V
	Consumption	<10VA(Single phase)
	Impedance	>2MΩ
	Accuracy class	Error±0.2%

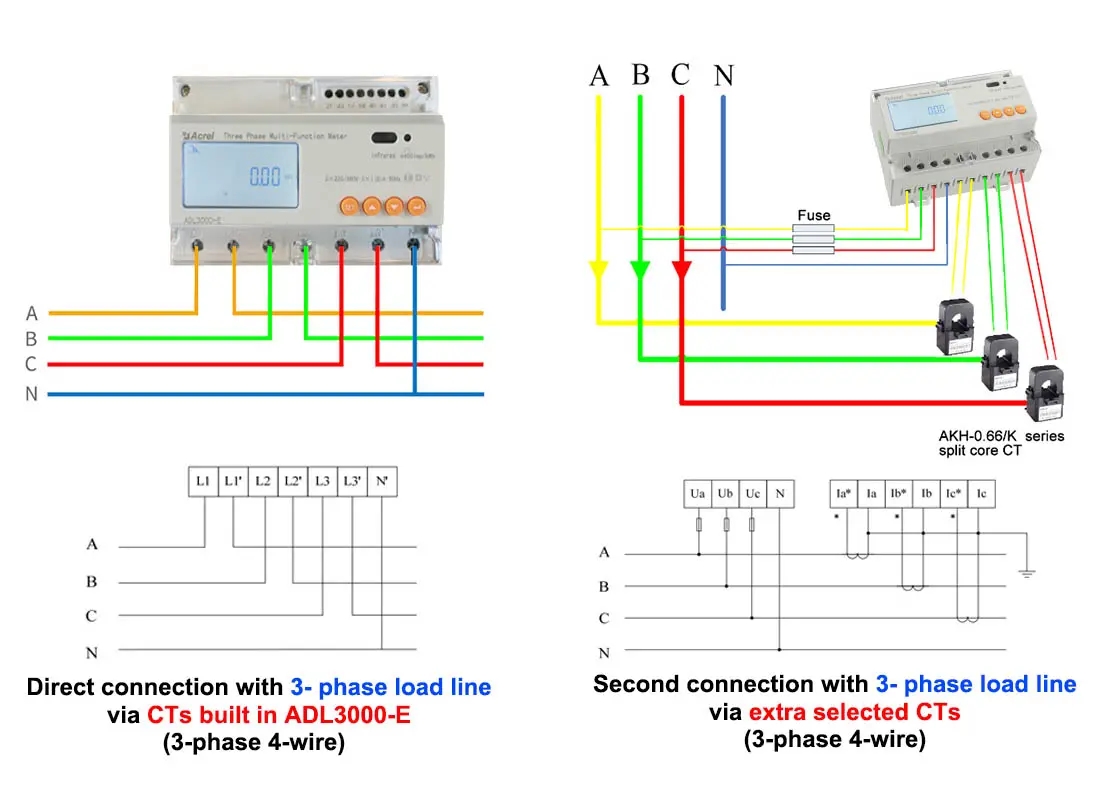

Current	Input current	3×1(6)A (second connection with 3- phase load line via extra selected CTs) 3×10(80)A (direct connection with 3-phase load line via CTs built in ADL3000-E)
	Consumption	<1VA(Single phase rated current)
	Accuracy class	Error±0.2%
Power		Active, reactive, apparent power, error±0.5℅
Frequency		45～65Hz， Error±0.2%
Temperature		-40℃～99℃
Energy		Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
Clock		≤0.5s/d
Energy pulse output		1 active optocoupler output, 1 reactive optocoupler output
Switching output		1 Switching output
Switching input		1 optocoupler input
Width of pulse		80±20ms
Pulse constant		6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication		RS485：Modbus RTU
Range of communication address		Modbus RTU:1~ 247;
Baud rate		1200bps~19200bps
Relative temperature		-25℃~+55℃
Relative humidity		≤95℅(No condensation)

General of ADL3000-E Three-phase Multi-function DIN Rail Energy Meter

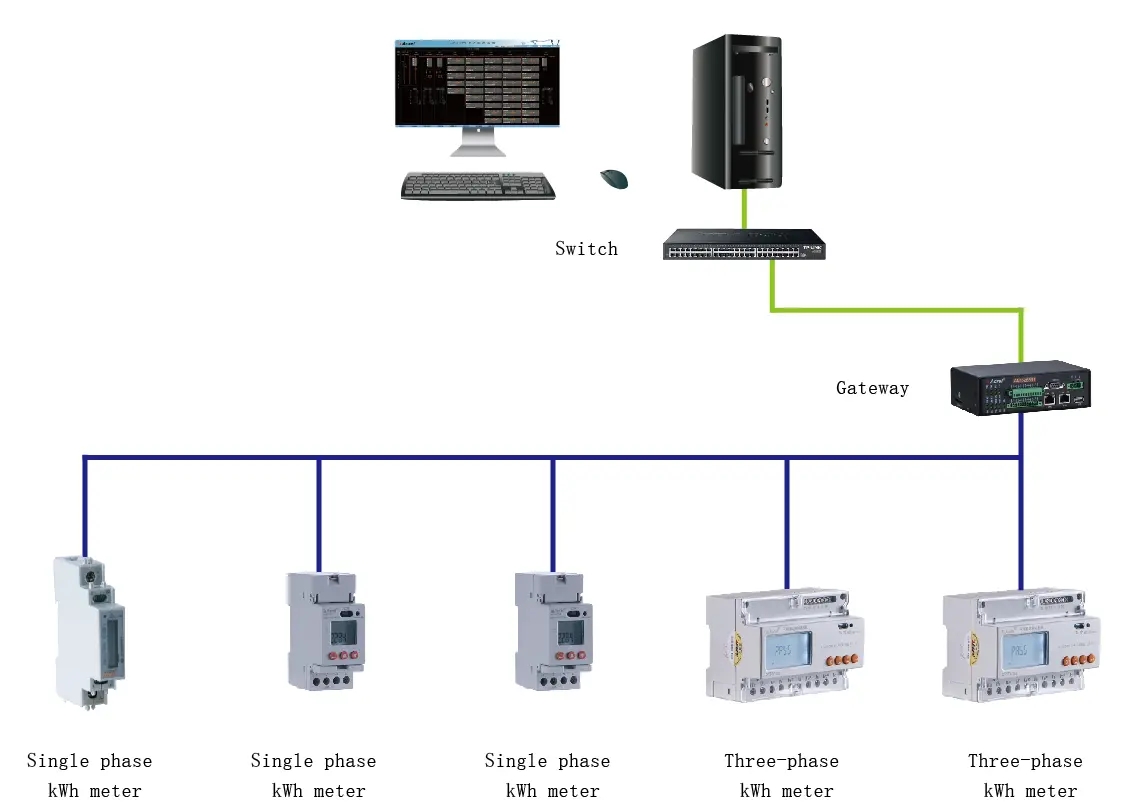

ADL3000 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.
