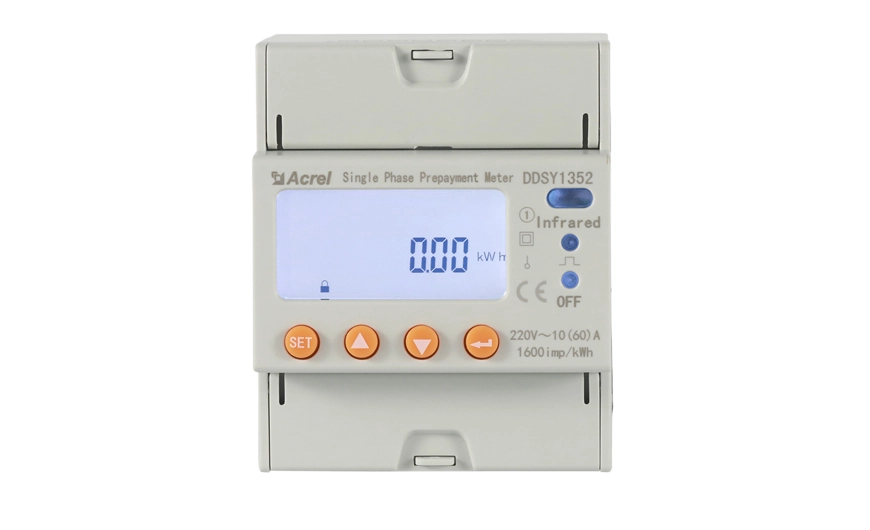

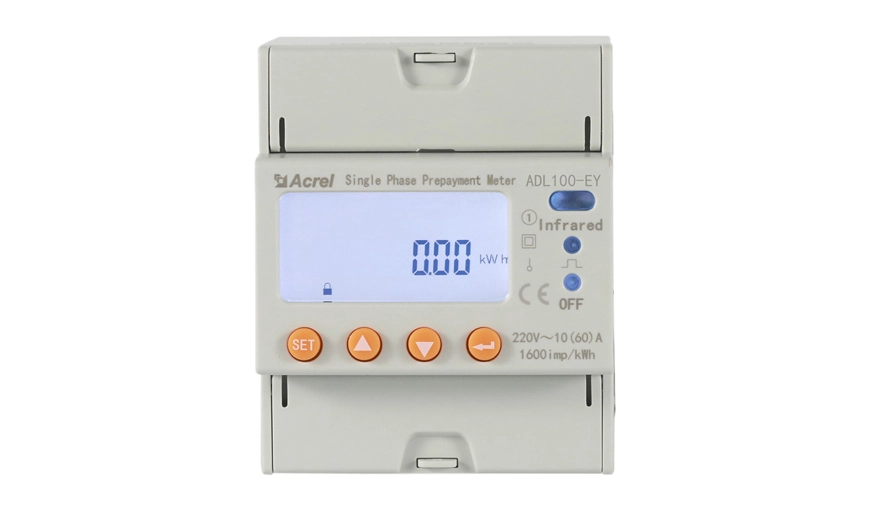

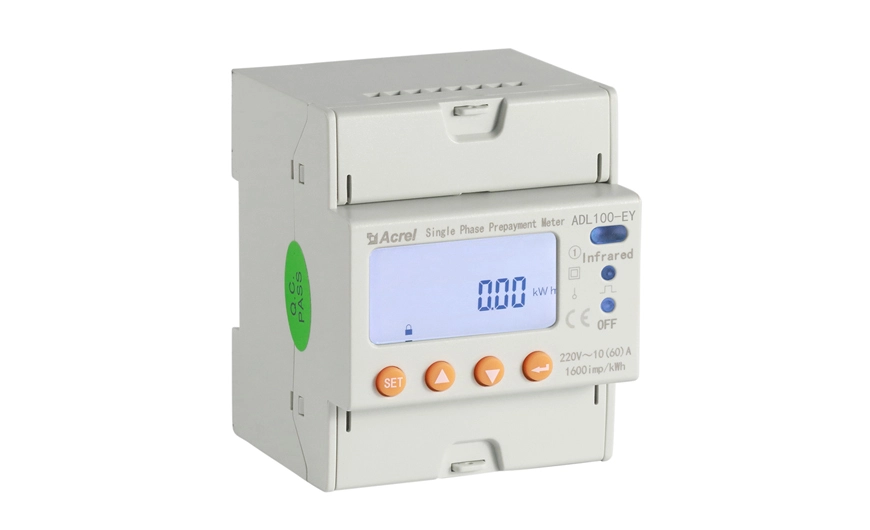

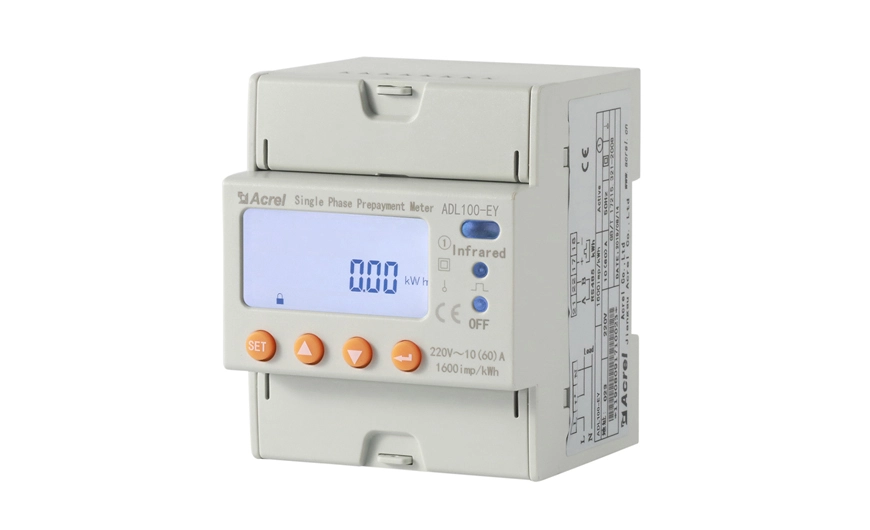

Application: Prepaid&Postpaid
Measurement: 1-phase kWh, kVarh, Active Power, Reactive Power, Current, Voltage and etc
Rated Voltage: 220~264Vac L-N & 45~65Hz
Rated Current: 10(60)A AC (via direct connect)
Communication: RS485 (MODBUS-RTU); Infrared
Auto Control: Built-in Holding Relay for Switch On-off Control
Multi-rate/tariff: 4 Tariff Rates and etc
Standard&Certificate: CE
Contact Us

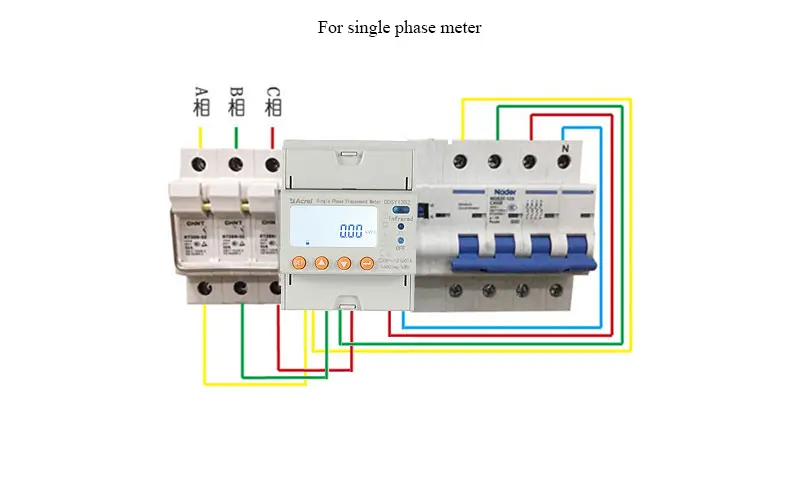

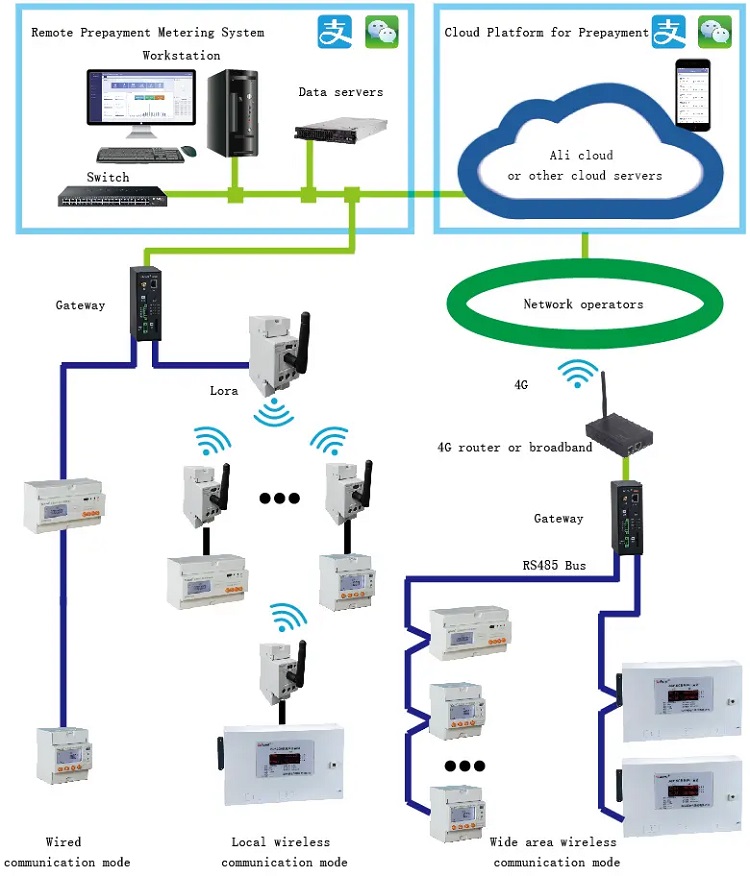

| Parameter | Description&Value | |
Measurement | kWh&kVarh | Total active kWh (bidirectional --positive and negative in total) |
| Electrical Paratmeters | U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency) | |
Function Mode | Prepaid Mode | Meter will shut down the power once the credit balance is below zero. (Data like credit balance is saved in the meter) |
| Postpaid Mode | Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using Prepaid System) | |
| Mode Change | Meter can change the mode between prepaid and postpaid by receiving the command from prepaid system | |
Control | Auto-tripping Control | Auto-tripping control is processed by the built-in high-capacity holding relay of the meters to realized on-off control of circuits breaker, also, this type of control will only be triggerred when meter is in Prepaid Mode |
| Remote Control | Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode | |
Multi-rate Multi-Tariff | Optional Function | 4 tariff rates (spike, peak, valley, flat); 14 time intervals by day |
Input Voltage | Rated Voltage | 220~264Vac L-N (Voltage signal input will be also served as power supply for meters) |
| Frequency | 45~65Hz | |
Input Current | Rated Current | 10(60)A AC (via direct connect) |
| Starting Current | 0.004 Ib | |
Accuracy | Measurement | Class 1 |
| Clock | ≤0.5s/d | |
Pulse | Pulse Width | 80ms±20ms |
| Pulse Constant | 1600imp/kWh | |
Communication | RS485 Interface | MODBUS-RTU Protocol |
| Infrared | Used for Meter Reading | |
HMI | LCD Display | 8 bits section LCD display |
| Keypads Programming | Setting of communication, current ratio and etc. | |

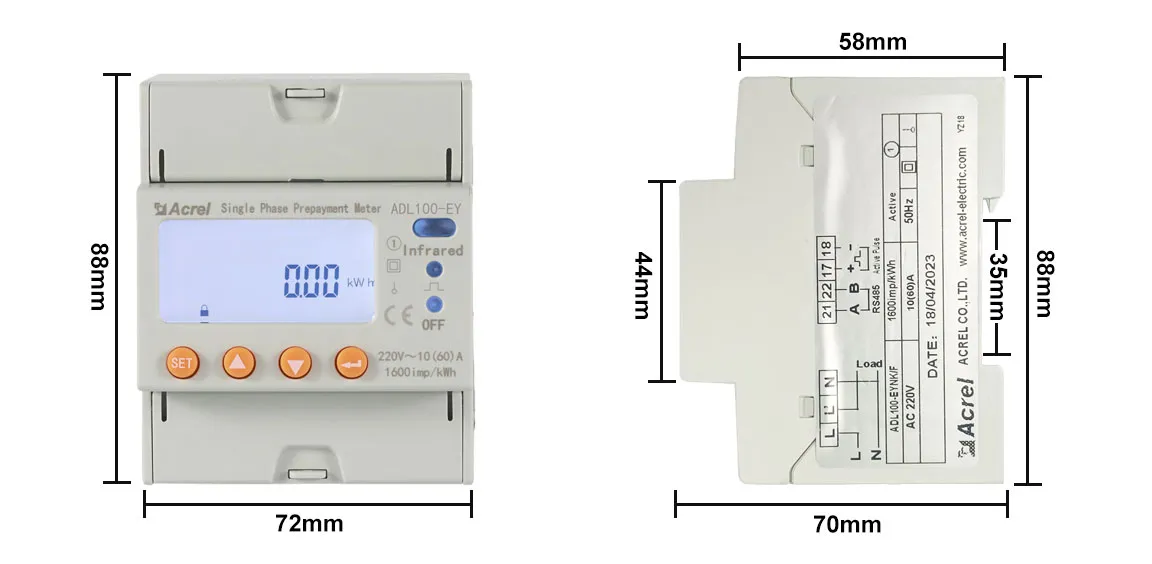

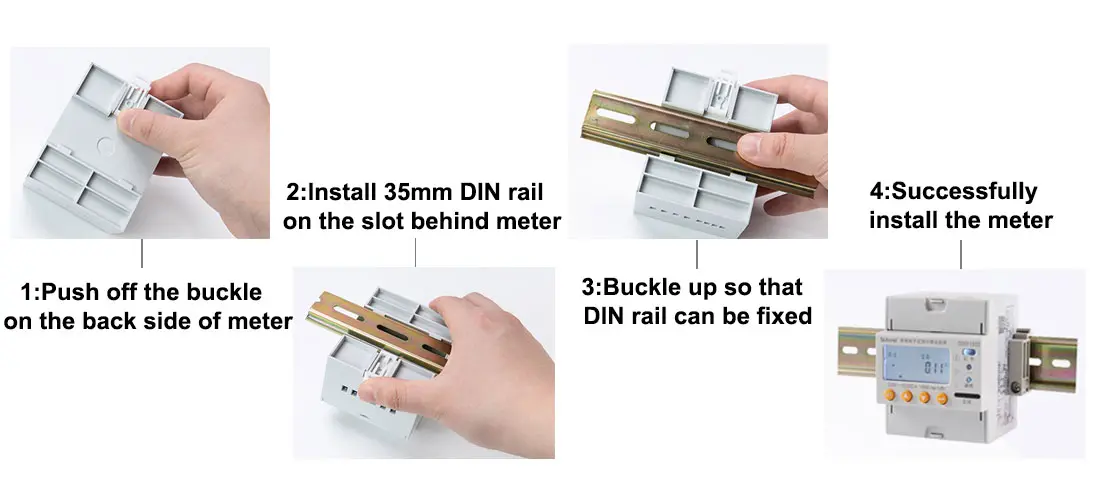

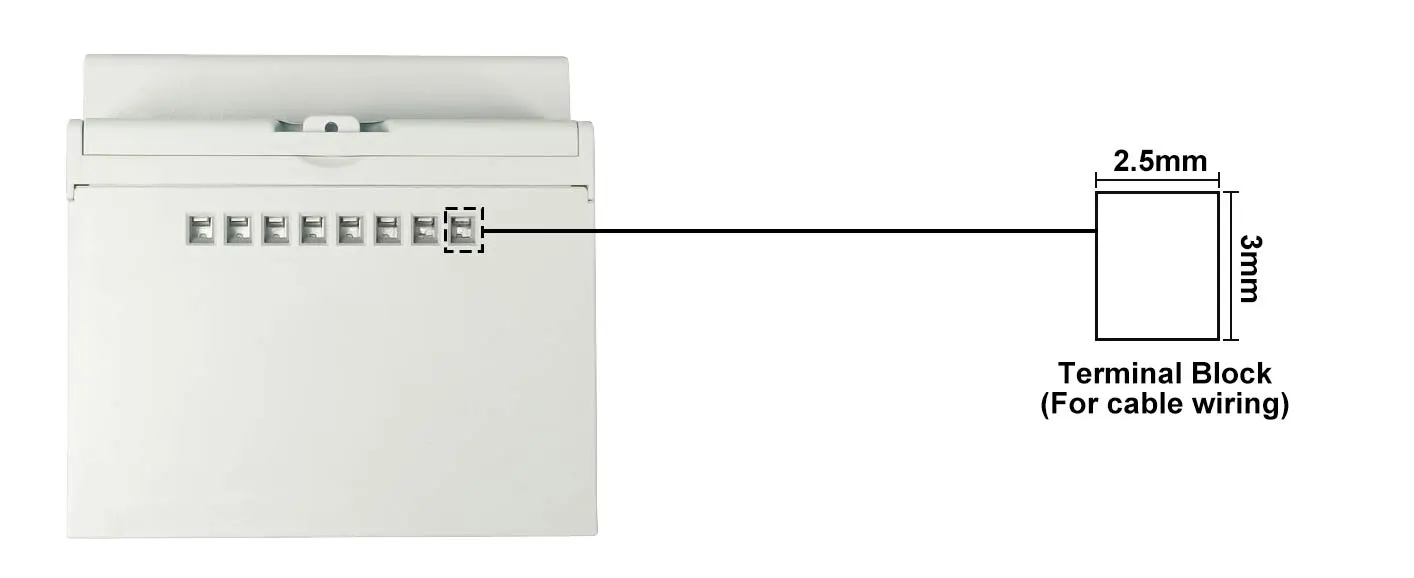

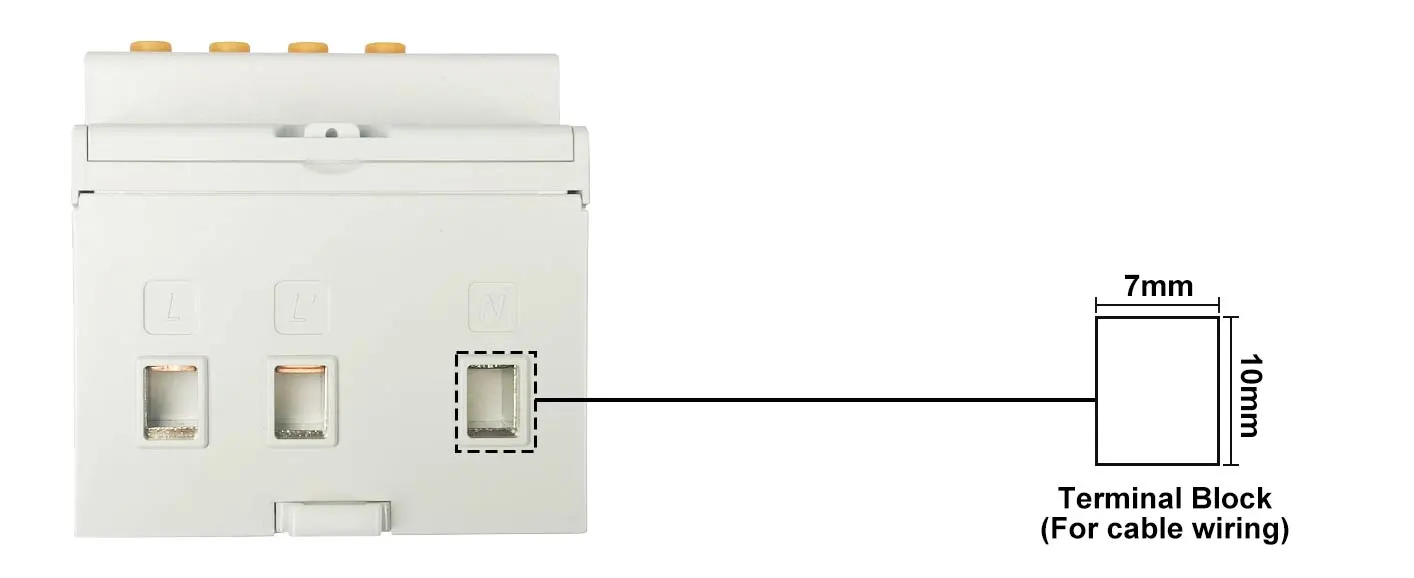

Mechanical Feature | Out-line Dimension (L*W*H) | 72mm*88mm*70mm |
| Max Wiring Ability (with Flexible Cable) | 25mm2 | |
Environment | Operating Temperature | -25℃~+55℃ |
| Storage Temperature | -40℃~+70℃ | |
| Humidity | ≤95% (No condensation) | |
| Altitude | ＜2000m | |
