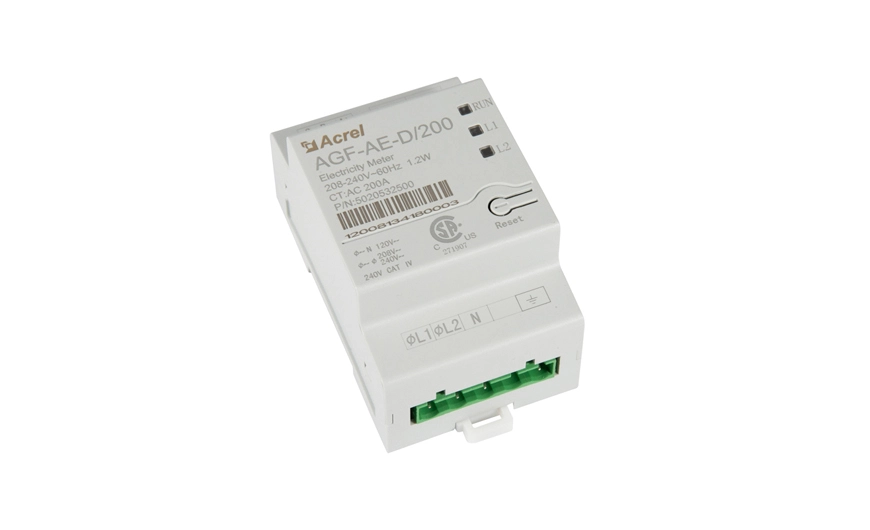

Measurement: Active Powr, Reactive Power, Current, Voltage and etc
Wiring: 1-phase 3-wire Connection
Current Rating: 100A or 200A AC (paired with external CTs)
Communication: RS485 (MODBUS-RTU)

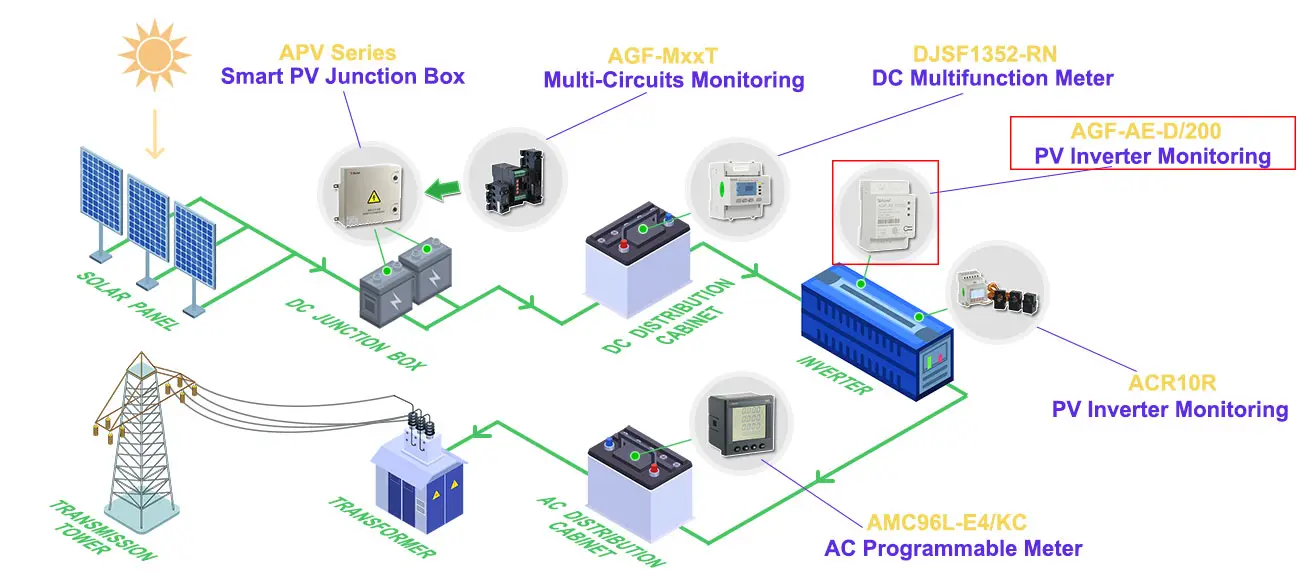

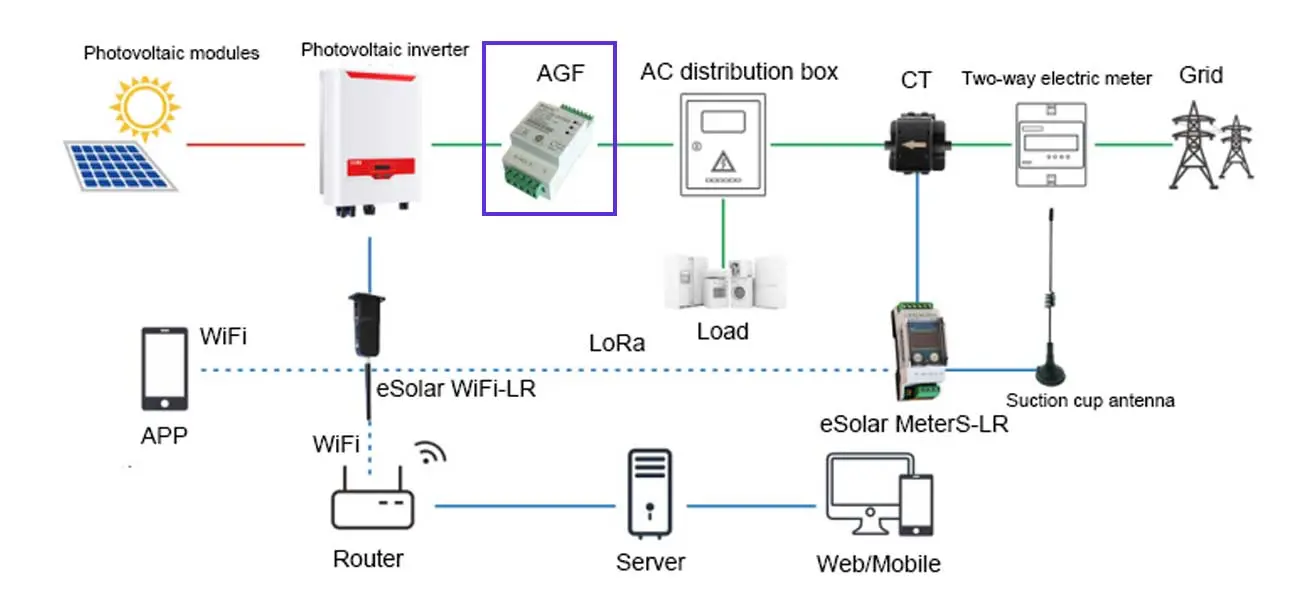

Application: Using in distributed Solar PV and Anti-reflux Inverters
Dimension: 54.1*87.8*52mm (H*W*D)
Installation: 35mm DIN Rail
Standard&Certificate: UL1741;TUV
Contact Us
Meter Electrical Service | Units | ||
AGF-AE-D/100 | AGF-AE-D/200 | ||
Rated Voltage-Line to N | 120 | V | |
Rated Voltage-Line to Line | 208/240 | V | |
Extended Voltage Range | 88%~110% | ||
AC Frequency | 60 | Hz | |
Grids Supported | L1/L2/N/PE | ||
Power Consumption | 1.2 | W | |
Communication | |||
Meter Communication Interfaces | RS 485 | ||
Response Time | ≤1 | S | |
Meter Accuracy | |||
Rated RMS current | 100 | 200 | A |
1%-100% of CT Current | ±0.5 | ±1 | % |
Current Transformers | |||
Number of Supplied Current Transformers | 2 | ||
Dimensions | I.D:15 O.D:35 | 70.5×54.5×39 (H×W×D) | mm |
Standard Compliance | |||
Safety | UL1741 | ||
Installation Specifications | |||

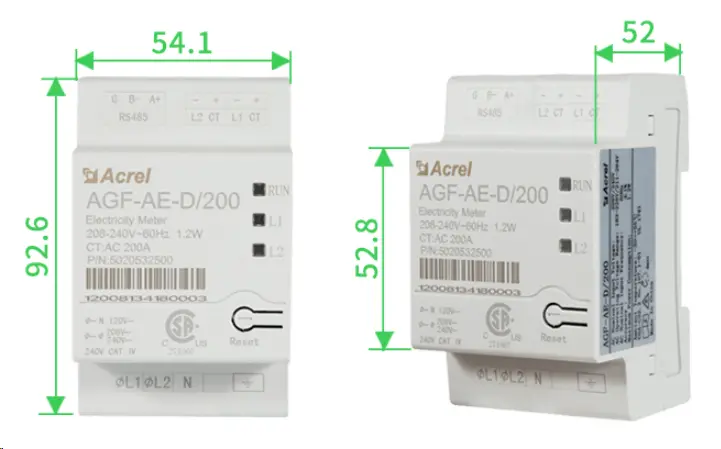

Dimensions(H×W×D) | 54.1×87.8×52 | mm | |
Weight | 0.2 | kg | |
Operating Temperature Range | -30~55 | ℃ | |
Relative Humidity (noncondensing) | 5 - 90 | % | |
Mounting Type | DIN-Rail，35mm | ||
The meter is intended to be installed in a power distribution box in the end use. The acceptance of the application is to be evaluated in the end product

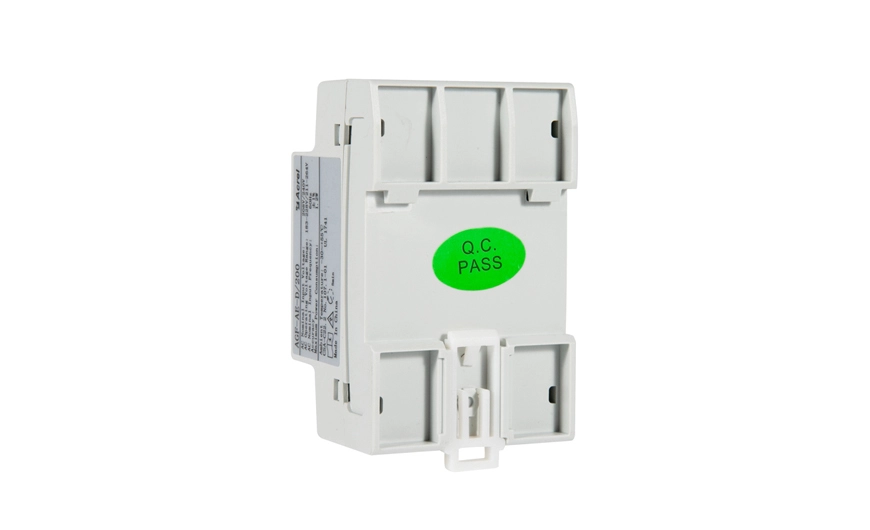

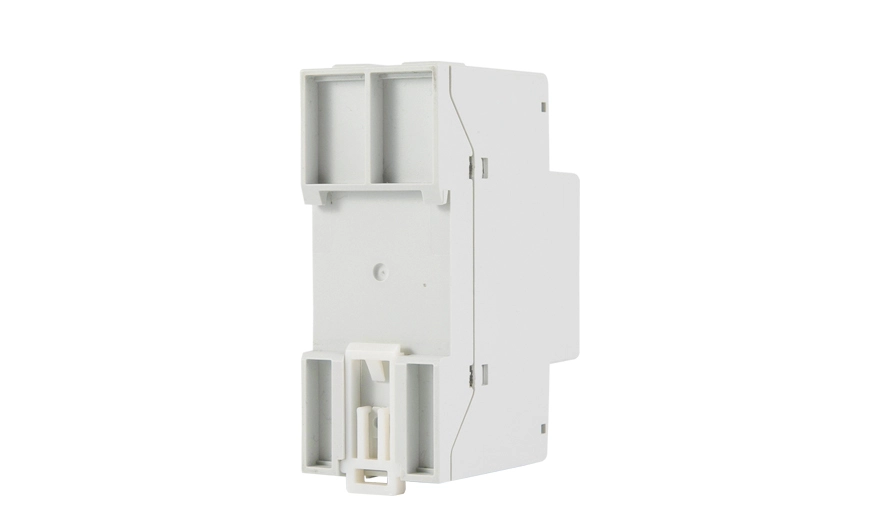

Push away the buckle on the back of the instrument Install the instrument on the din rail
Push the buckle up fixed

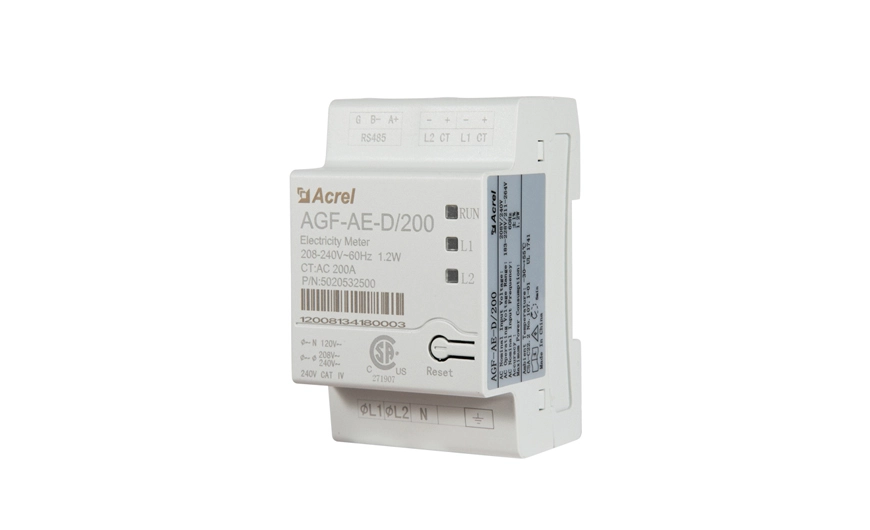

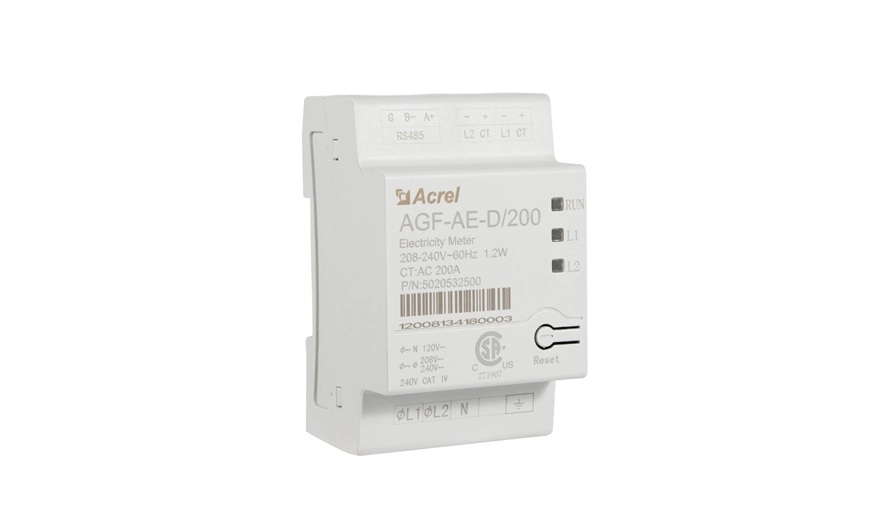

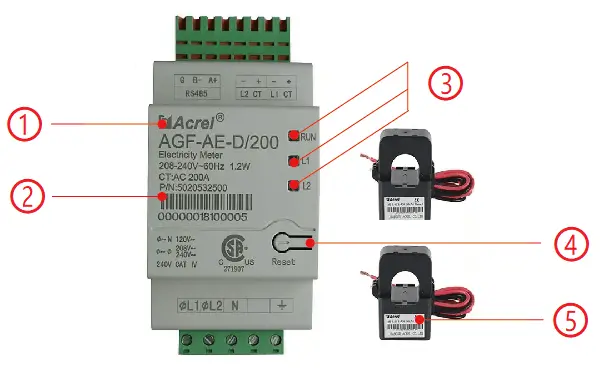

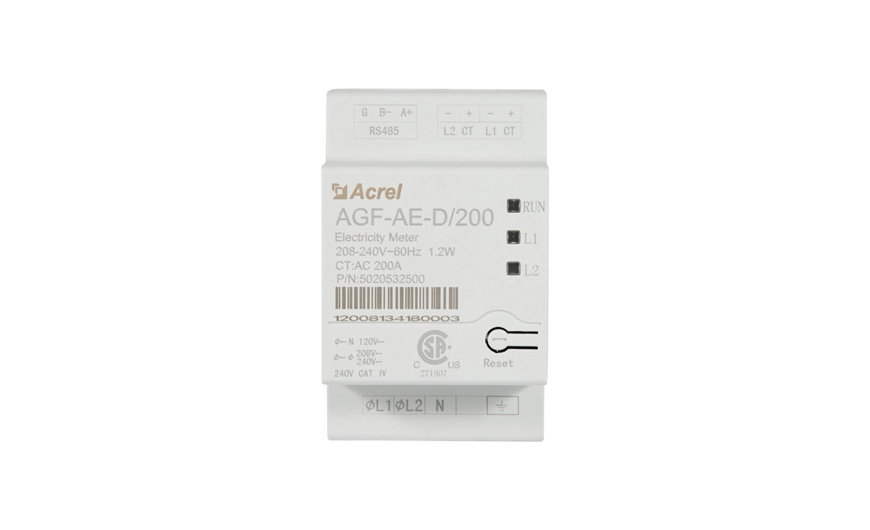

① Brand / Model
② Panel
③ Indictor Lights
④ Reset Button
⑤ Current Transformer
