Due to its strong automation characteristics, medical IT systems have been effectively used in safe power consumption in hospitals. This kind of system can effectively reduce the occurrence of electric shock burns and life-threatening situations for medical staff and patients. At present, isolated power supply systems are generally installed in important places such as hospital operating rooms. Medical IT isolated power supply systems provide reliable guarantee for patient safety.
Rated Power: 10kVA/8kVA/6.3kVA/3.15kVA
[Optional]
Rated lnput Voltage: 230Vac- Rated Frequency: 50Hz/60Hz
Rated lnput Current: 45.3A/36A/28.5A/22.5A/14.2A
[According to rated power]
Efficiency: 96%
Leakage Current: <200pA- Noise Level: <40dB
Max Operating Temperature: <40℃
Temperature Moniotoring Reservation: with 2embeded PT100 Temp. Sensor.

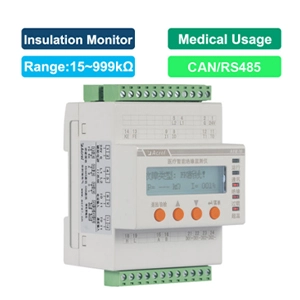

Insulation Resistance Measuring Range: 15-999KU-Insulation Alarm Ranget: 50-999KU
Measuring Current: < or = 5uA
Measuring Voltage: <or = 12V
Temp. Measuring Range: -50~+200yc [via 2 PT100]
Load Measuring Current Range: 2.1~60A AC
Alarm Output: 2 way relay alarm outut
Communications: 1-way CAN; 1-way RS485
Auxiliary Power Supply: 18~36Vdc
Fault Location Detect Signal Generation: Function code /SG

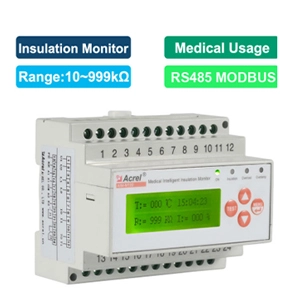

lnsulation Resistance Measuring Range: 10-999KU
lnsulation Alarm Ranget: 50-999KU
Measuring Current: < or = 50uA
Measuring Voltage: <or = 12V
Temp. Measuring Range: -50~+200yc [via 2 PT100]
Load Measuring Current Range: 2.1~50A AC
Alarm Output: 2 way relay alarm outut
Communications: 2-way RS485
Auxiliary Power Supply: 220Vac [±10%]
Communications: RS485 [MODBUS-RTU]
Monitor: up to 1~16 AIM100 or AIM300/SG
Auxiliary Power Supply: 24Vdc
Mount Type: Wall mounted
Cut-out Dimension: 74.5mm×158.5mm

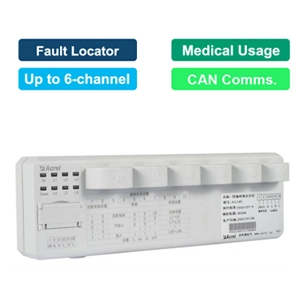

Fault Location: up to 6 channel fualt locating circuits 1-phase
Fault Locating Response Time: <5S
Communicaitons: CAN comms [Self-defineprotocol]
Rated Voltage: O~242Vac
Rated Frequency: 45~60Hz
Auxiliary Power Supply: 18~36Vdc

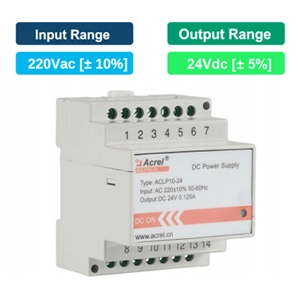

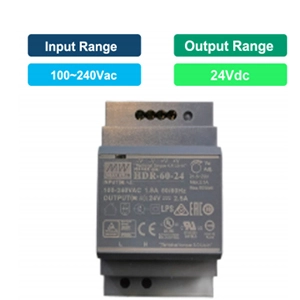

Input Range: 100~240Vac [1.8A]
Output Range: 24Vdc [2.5A]
Installation: 35mm DIN-rail installation
lnput Range: 220Vac [± 10%]
Output Range: 24Vdc [2.5A]
Installation: 35mm DIN-rail installation
(1) Project Overview:
Customer: CSE Solucoes Eletricas Ltd [Contractor]
Country: Brazil
Project Aim: Supplying the complete set of Hospital lnsulation Power Cabinet for lT power system modification and monitoring.
Project Amount: About 720.000 USD

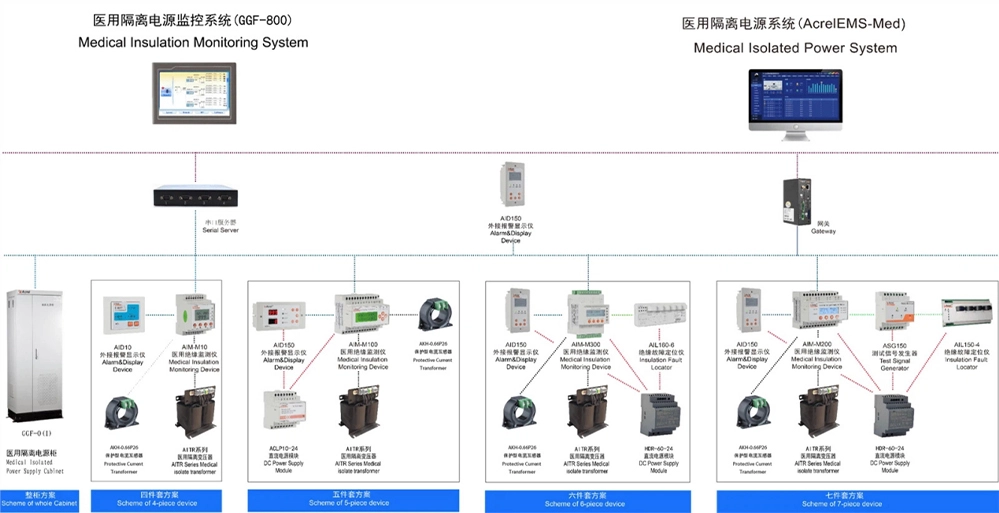

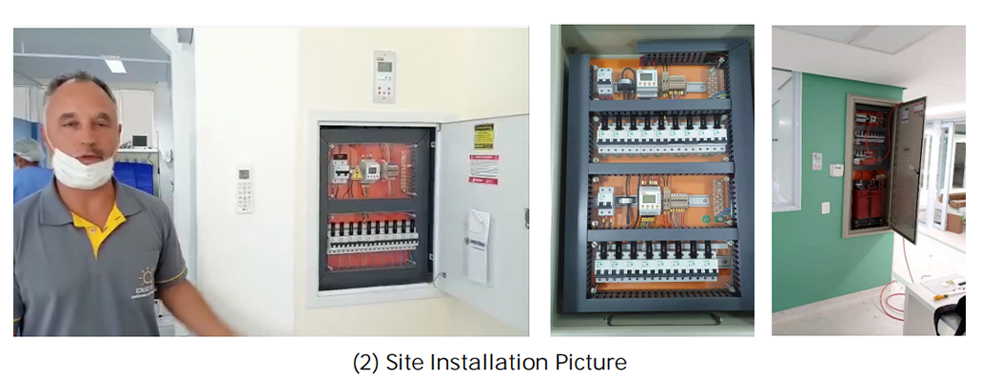

(2) Applied Product Combination:
- AIM-M10 Medical Insultation Monitor [For monitoring lT system insulation level and monitoring medical isolating transformer]
- AIM-M100 Medical Insultation Monitor [For monitoring lT system insulation level and monitoring medical isolating transformer]
- ASG150 Insulation Signal Generator
- AIL150-8 Insulation Fault Locator

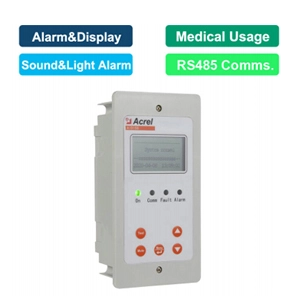

- AID150 Centralized Alarm and Display Unit
- AID200 Centralized Alarm and Display Unit
- AKH-0.66/P26 Current Transformer
- ACLP10-24 Power Supply Module
(1) Project Overview:
Customer: Info service &Computer Srl [Contractor]
Country: Romania
Project Alm: Supplying the complete set of Hospital Insulation Power Cabinet for IT power system modification and monitoring.
Project Amount: About 10.000 USD
(2) Applied Product Combination:
- GT180 Series Medical lnsulation Power Cabinet [Cabinet including all necessary parts.]

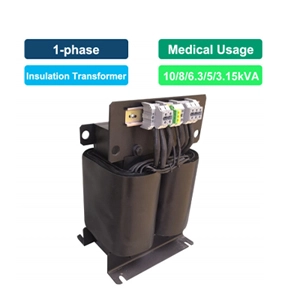

- AITR 630OS Medical isolating transformer [For modifying into lT Power System]
- AIM-M300/SG Medical lnsultation Monitor [For monitoring lT system insulation level and monitoring medical isolating transformer]
- AID150 Centralized Alarm and Display Unit [For centralized insulation alarm and monitoring data display]
- AIL160-6 Insulation Fault Locator [For locating insultation fault, paired with AIM-M300/SG]-AHK-0.66/P26 Current Transformer [Paired with AIM-M300/SG for current signal input]
- HDR-60-24 Power Supply Module [paired with AIM-M300/SG,AID150, for power supply]

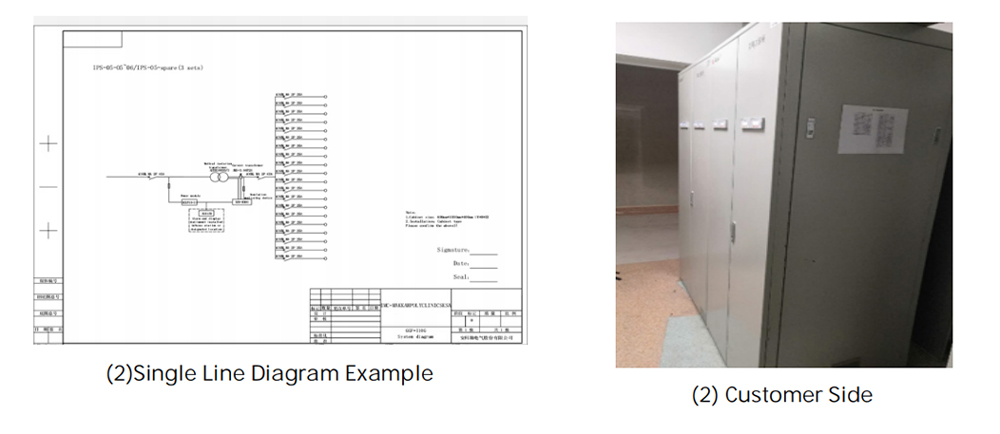

- CBS and Cables [according to the design of single line diagram]
