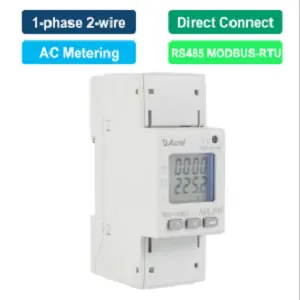

Rated Voltage: 220~264Vac L-N (45~65Hz)
Rated Current: 10(80)A AC
Accuracy: Class 1.0 for active energy monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Extra Function: Multi-rate/tariff metering & Pulse Output
Certificate&Standard: IEC; CE; CE-MID;EAC
Rated Voltage: 220~264Vac L-N (45~65Hz)
Rated Current: 10(60)A AC
Accuracy: Class 1.0 for active energy monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Extra Function: Multi-rate/tariff metering&Pulse Output
Certificate&Standard: CE; EAC

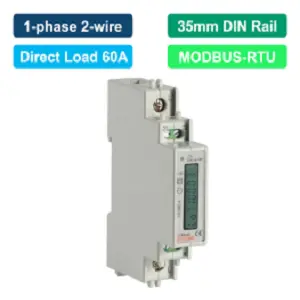

Rated Voltage: 220~264Vac L-N (45~65Hz)
Rated Current: 10(60)A AC
Accuracy: Class 1.0 for active energy monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Certificate&Standard: CE; EAC

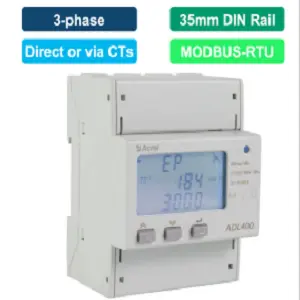

Rated Voltage: 3x380~456Vac L-L & 220~264Vac L-N (45~65Hz)
Rated Current: 3x10(80)A AC (direct connect) or 3x1(6)A AC (via CTs)
Accuracy: Class 0.5S for active energy monitoring
Harmonic: Total and 2~31st harmonic monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Extra Function: Multi-rate/tariff metering & Pulse Output
Certificate&Standard: IEC; CE; CE-MID;EAC
Rated Voltage: 3x380~456Vac L-L & 220~264Vac L-N (45~65Hz)
Rated Current: 3x10(80)A AC (direct connect) or 3x1(6)A AC (via CTs)
Accuracy: Class 0.5S for active energy monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Certificate&Standard: UL; CE; IEC; EAC

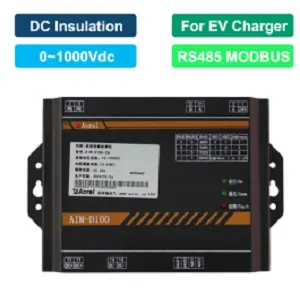

Application: for DC EV charger Insulation Monitoring
Insulation Resistance Monitoring Range: 1kΩ~10MΩ
Insulation Alarming Range: 10kΩ~10MΩ
Insulation Monitoring Mode: Triggered by RS485 Comms.
Voltage Monitoring: 0~1000Vdc [0.5 Accuracy]
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Extra Current Monitoring: 1-channel DC current metering via shunt; 5% accuracy [module name AIM-D100-CAI]
Auxiliary Power Supply: 9~36Vdc
Certificate&Standard: CE

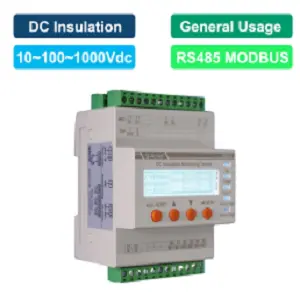

Application: for general DC system insulation monitoring.
Insulation Resistance Monitoring Range: 1kΩ~10MΩ
Insulation Alarming Range: 10kΩ~10MΩ
Insulation Monitoring Mode: Real-time monitoring
Voltage Monitoring: 10~100Vdc [Module: AIM-D100-TL];or 100~1000Vdc [Modue:AIM-D100-TH]; accuracy 0.5
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Auxiliary Power Supply: 9~36Vdc
Certificate&Standard: CE

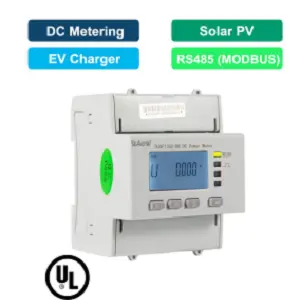

Voltage Input Range: 0~1000Vdc
Current Input Range: 0~5Vdc, 4~20mA DC (via Hall Sensor) 0~75mV (via Shunt) and etc.
Accuracy: Class 1.0 for active energy monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Extra Function: Multi-rate/tariff metering & Optional Dual Circuits Monitoring
Certificate&Standard: CE, UL

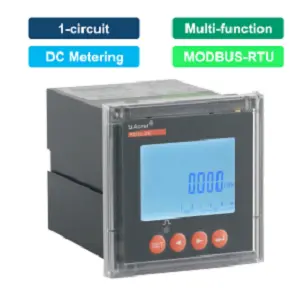

Voltage Input Range: 0~1000Vdc
Current Input Range: 0~5Vdc, 4~20mA DC (via Hall Sensor) 0~75mV (via Shunt) and etc.
Accuracy: Class 1.0 for active energy monitoring
Communicaiton: RS485 Interface, MODBUS-RTU Protocol
Extra Function: Multi-rate/tariff metering
Certificate&Standard: CE
Current Input Range: 0~(50~500)A DC
Current Output Range: 0~75mV
Advantage: High accuracy, strong anti-interference
Application: Paired with Acrel DC energy meter for current intput
Current Input Range: 0~(50~500)A DC
Current Output Range: 0~±5Vdc
Aperture: φ20mm
Auxiliary Power Supply: ±12~±15Vdc
Advantage: Safety with electricity isolation
Application: Paired with Acrel DC energy meter for current intput
Current Input Range: 0~(200~1000)A DC
Current Output Range: 0~±5Vdc
Aperture: φ40mm
Auxiliary Power Supply: ±12~±15Vdc
Advantage: Safety with electricity isolation
Application: Paired with Acrel DC energy meter for current intput
